Edit a facade source

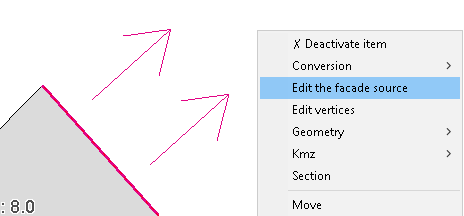

Facade sources can be edited via the context menu when the axis of the source is selected. Right-click (in the Graphic window) and activate the Edit a facade source command.

Edit facade source

Edit facade source

The Facade source interface is displayed.

Note that if you select several facade sources in same time, the List of facade sources is displayed with only the selected sources.

Delete a facade sources

To delete Facade source objects, select one or several Facade source objects and use:

•The Delete key or the Delete command in the context menu.

Supprimer les sources ponctuelles

Select a facade sources of the same nature

It is possible to select all the Facade source objects belonging to the same nature. This is done by going to the Natures list, selecting the relevant Nature and clicking on the Nature_BtnSelect button.


note

If the function does not appear or does not work, this means the overlay cannot be edited. To change the status of an overlay, select it and click on the button Calque_btnStatut from the Project window, and choose Editable.
