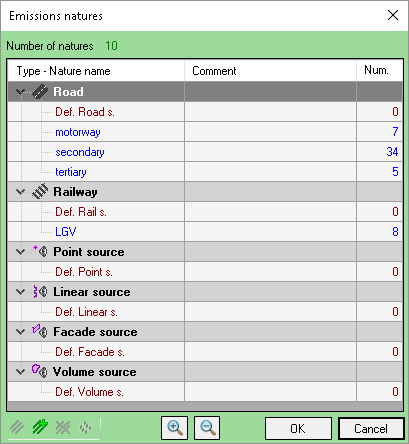

The emissions natures list is accessed from the ribbon Model, by clicking on the button in the group List of emissions. Natures are listed by source type (Road, Railway, Individual).

The default natures are shown in red and cannot be edited.

The number of objects using a given nature is shown and influences the functions.



Several actions are possible when a row is selected:

•You can edit a nature with the button, by double clicking or via the context menu.

•You can add a nature with the button or via the context menu.

•You can delete a nature with the button or via the context menu (not accessible if the nature is used by a source).

•You can select sources using a nature with the button or via the context menu (not accessible if the nature is not used by a source).

The and buttons allow you to zoom in and out on the current view.

Use the OK button to confirm the modifications.
