Edit NMPB unit

 Previous pageBack to chapterNext page

A unit corresponds to independent rolling stock. The editing interface of a unit is accessible from the train list window.

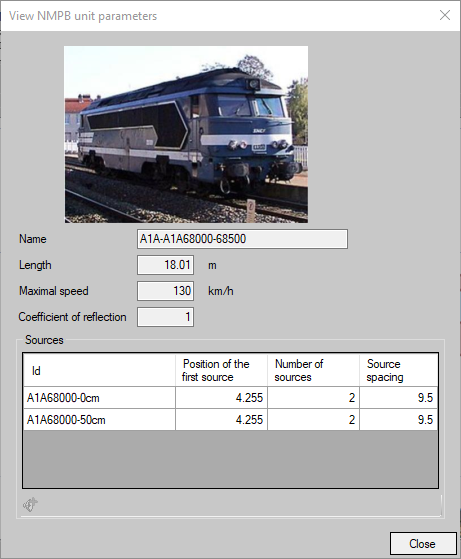

Edit a NMPB unit

Edit a NMPB unit

A unit present in the original MithraSIG database cannot be edited. Only user-created units can be edited.

A NMPB unit has the following characteristics:

•The name of the unit.

•The length of the unit in m.

•The maximal speed of the unit in km/h.

•The unit's reflection coefficient (used when calculating the body/wall interaction). This value is between 0 and 1.

•The sources of the unit: the number, the positioning in the unit from the head and the spacing between them (if several). Any length inconsistency is indicated by a red dot. The button Train_btnEditSource allows editing of the selected source.
