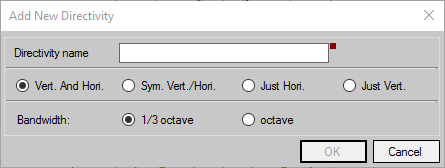

To add a directivity, click on the button from the List of directivities.

A directivity has:

•A name (must be unique).

•A type: horizontal (vertical diagram considered as omni), vertical (horizontal diagram considered as omni), horizontal and vertical, symetric between horizontal and vertical (only one diagram used ont he 2 axis).

•A bandwidth: octave or 1/3 octave.
