A cutting period corresponds to the division of a day into periods of time. The base unit is the hour. The project used precise cutting periods for all sources – simulations – renderings.

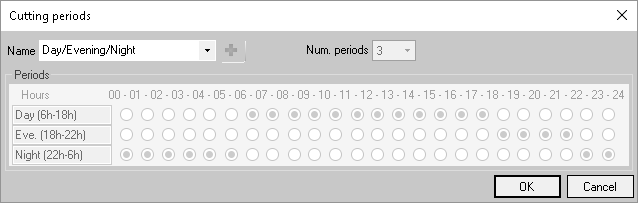

Cutting periods are available from a list that can be displayed by clicking on the button in the group Parameters from the ribbon Model, and selecting Periods in the list.

The cutting is composed of:

•A Name and a Number of periods.

•For each period: the relevant hours.

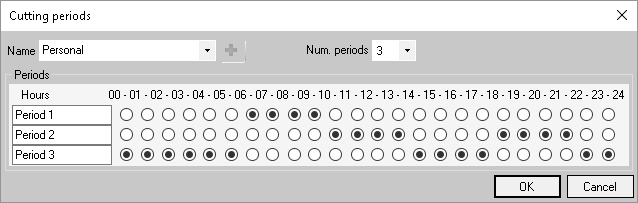

To create a cutting period, click on the button to open an interface for entering a name (which must be unique). The fields then become accessible.



Next you must:

•Enter a unique name per period.

•Ensure that each period covers at least one hour.

If all conditions are met, the red dots disappear and the OK button becomes accessible.

A personal cutting period can be deleted using the button.
