Signature and dynamic indicators for rail
New dynamic indicators are appearing in MithraSIG 5.3.
From a Receiver type calculation and in the presence of railway sources, it is now possible to launch a simulation that allow you to calculate the acoustic signature of trains and various indicators such as LAmax,S, SEL, TEL and LeqTp. This is done through a new storage mode of simulation, named LAmax.

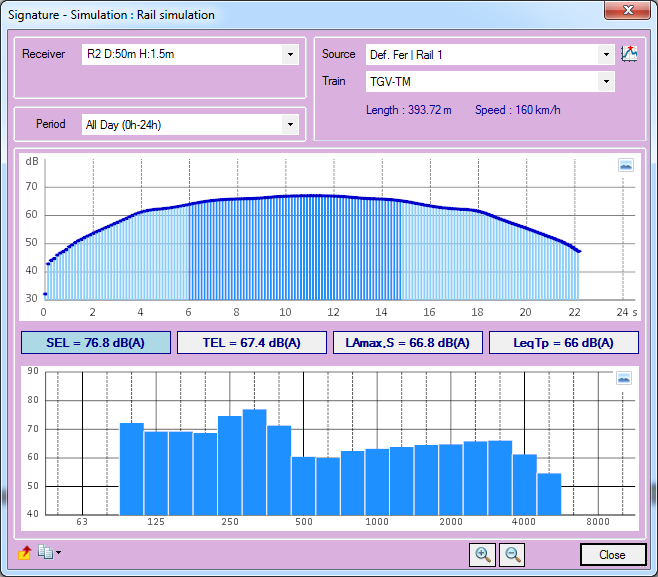

Once the calculation is complete, this information is available in a window named Signature, accessible directly to the right click on the calculation concerned.
In this window, it is then possible to consult for each receiver the acoustic signature of each of the trains of the surrounding channels. It is also possible to visualize the acoustic spectrum corresponding to each dynamic indicator.
These representations can be easily exported as a text or image file.
