Edit / Delete a point source

 Previous pageBack to chapterNext page

Edit a point source

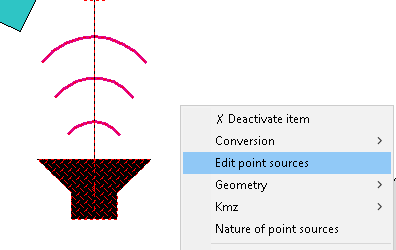

Point sources can be edited via the context menu when the axis of the source is selected. Right-click (in the Graphic window) and activate the Edit a point source command.

Edit a point source

Edit a point source

The Point source interface is displayed.

Note that if you select several point sources in same time, the List of point sources is displayed with only the selected sources.

Delete a point sources

To delete Point source objects, select one or several Point source objects and use:

•The Delete key or the Delete command in the context menu.

Supprimer les sources ponctuelles

Select a point sources of the same nature

It is possible to select all the Point source objects belonging to the same nature. This is done by going to the Natures list, selecting the relevant Nature and clicking on the Nature_BtnSelect button.


note

If the function does not appear or does not work, this means the overlay cannot be edited. To change the status of an overlay, select it and click on the button Calque_btnStatut from the Project window, and choose Editable.
