Convert roads into linear sources

 Previous pageBack to chapterNext page

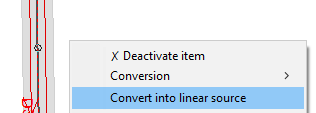

Select the roads to be converted, right-click and activate the Convert into linear source command.

Convert into linear source

Convert into linear source



When converting roads into linear sources, the height of the source is determined in accordance with the road emissions simulation method:

Emission method

Source height

MITHRA-CSTB

0.30 m

AR-INTERIM

0.50 m

NMPB08

0.05 m

Harmonoise

Detailed in the geometric parameters of the road

Cnossos-EU

0.05 m
