The Section function can only be accessed if a single line is selected (context menu).

The window can be resized and the D and Z fields represent the factors that can be edited (confirm by pressing Enter).

Click on the button to have several options to manage X/Y scale, display text / scale .axis, and to save the cross section as an image.

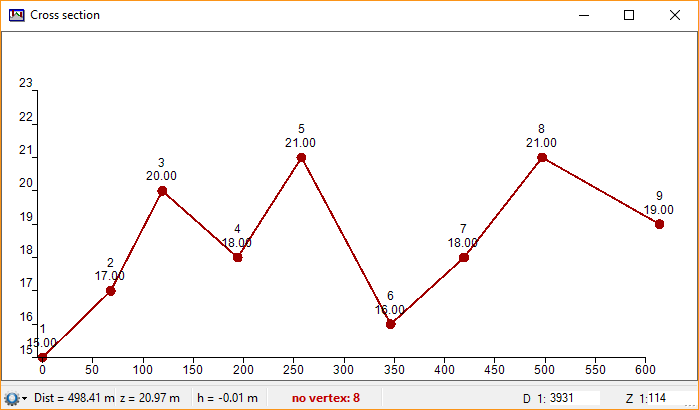

The line is shown in brown (in accordance with the direction of digitization). Above each point, the altitude and the unique ID are mentioned.

Tips

Activate the fields D or Z by clicking in them:

•Key Z: turn on/off vertex information.

•Key Q: decrease font size.

•Key S: increase font size.
