It is possible to modify the parameters of several buildings simultaneously using the List of buildings. To do that, you can:

•Double-click on the overlay Building.

•or select the overlay Building and click on the button in the Project window.

•or select the buildings to modify (allow a custom selection). Do a right-click and activate the command Edit building(s).

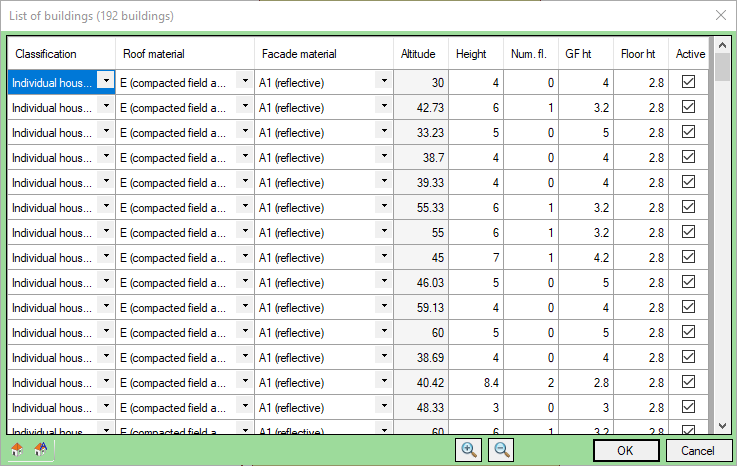

The List of buildings box is displayed with the list of all the buildings in the selection.

oYou can activate the Building object box by right-clicking on one of the buildings and activating the Edit building command in the context menu or the button, carry out the modification and then click OK to confirm.

oYou can modify the values of the parameters in the table.

•Click OK to confirm.

Modification of a parameter of a building in the selection can be repeated with all the buildings in the selection. To do this, right-click on the value of the parameter to be repeated and activate the command Apply to all listed buildings in the context menu or click the button. The value is then applied to all the objects. Only the Height cannot be repeated on other buildings in that the command Apply to all listed buildings recalculates the Height from the values of the parameters: Ground-floor height, Floor height and Number of floors.

Note: Only 10 000 buildings can be visible in the list.
