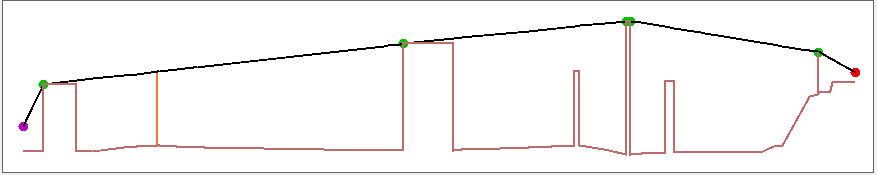

Interface of a section of ray
In the section window :
•Purple circle: receiver
•Red circle: source point
•Green circle: diffraction point
•Orange vertical line: reflection
•Brown line: ground / building
The user can know the coordinates of a point (distance with respect to the source, altitude and ground level) displayed by moving the mouse cursor in the section window. This function allows an estimation of the height of a noise barrier that is necessary to divert a ray for example.
