To visualize a facade map section, select one or several items of the facade map (receivers or polygons), then right-click and activate the command Facade map section.

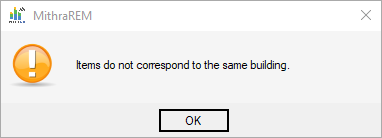

If selected items relate to different buildings, a message appears.



The map displayed in section depends on the type of the selected item.

Click on a facade on the building to the left to change the main view.

A move of the mouse on a graphic item updates the value. The unit is the one of the map.

The window is sizable by clicking on the button , to have several options to manage X/Y scale, display text / scale .axis, and to save the cross section as an image.
