The following tables describe the spatial tests used in MithraSIG. The selected item appears in blue and the candidate item is in orange. The double arrow at the top of a column indicates that the selected item is also returned in the results.

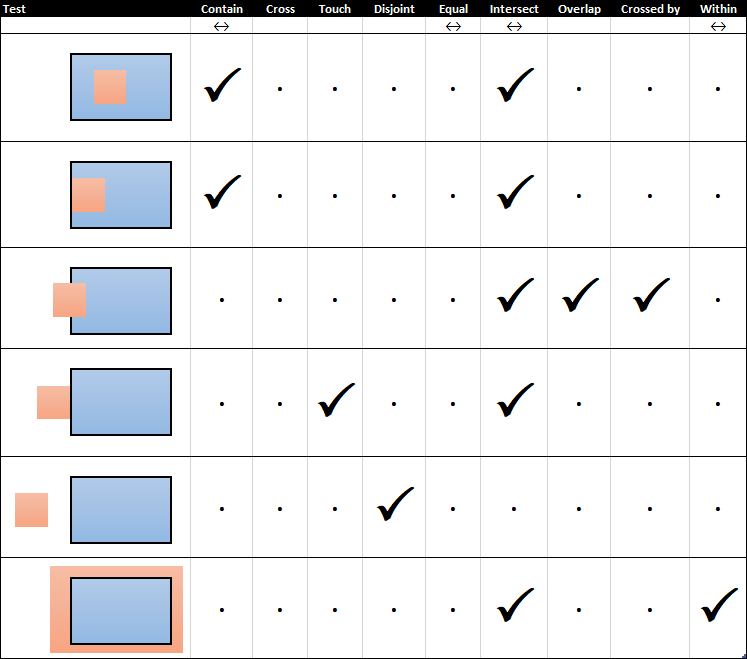

Selected item: Polygon - Candidates to find: Polygon

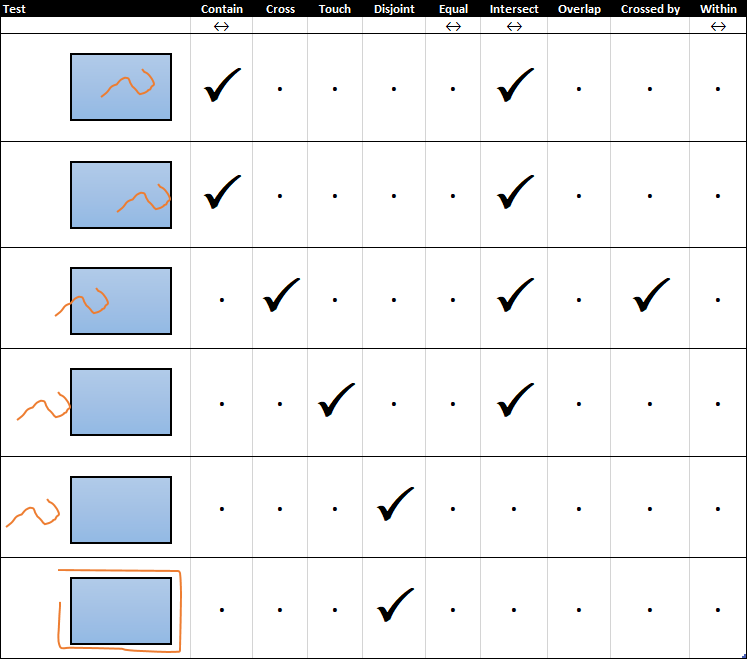

Selected item: Polygon - Candidates to find: Line

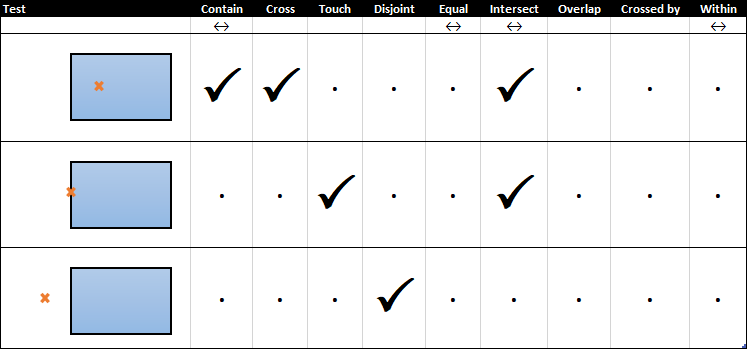

Selected item: Polygon - Candidates to find: Point

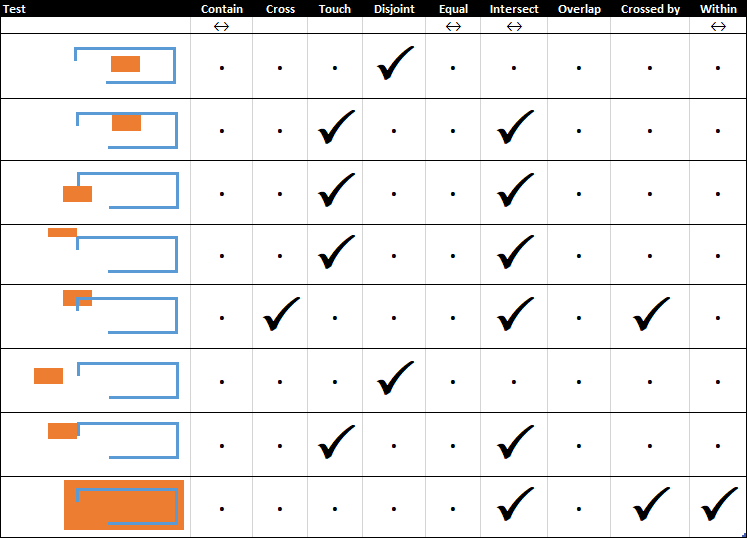

Selected item: Line - Candidates to find: Polygon

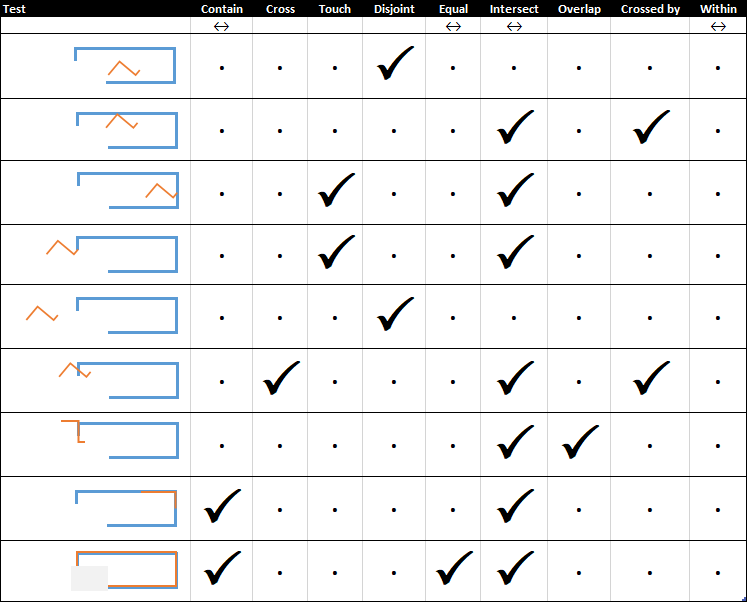

Selected item: Line - Candidates to find: Line

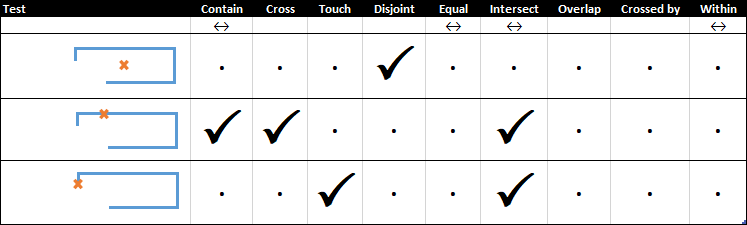

Selected item: Line - Candidates to find: Point

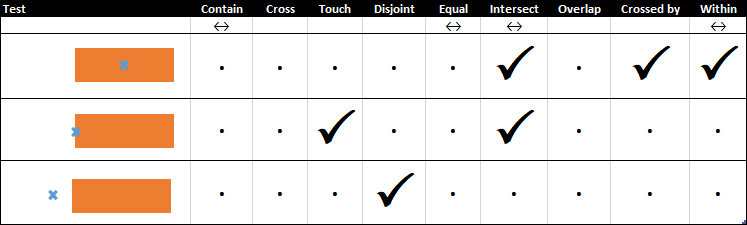

Selected item: Point - Candidates to find: Polygon

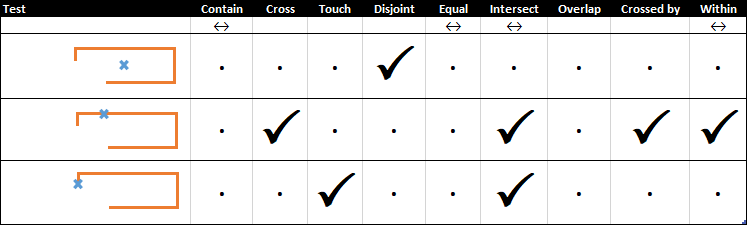

Selected item: Point - Candidates to find: Line

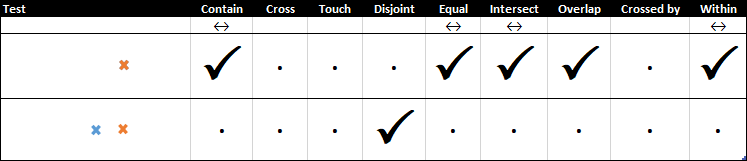

Selected item: Point - Candidates to find: Point
