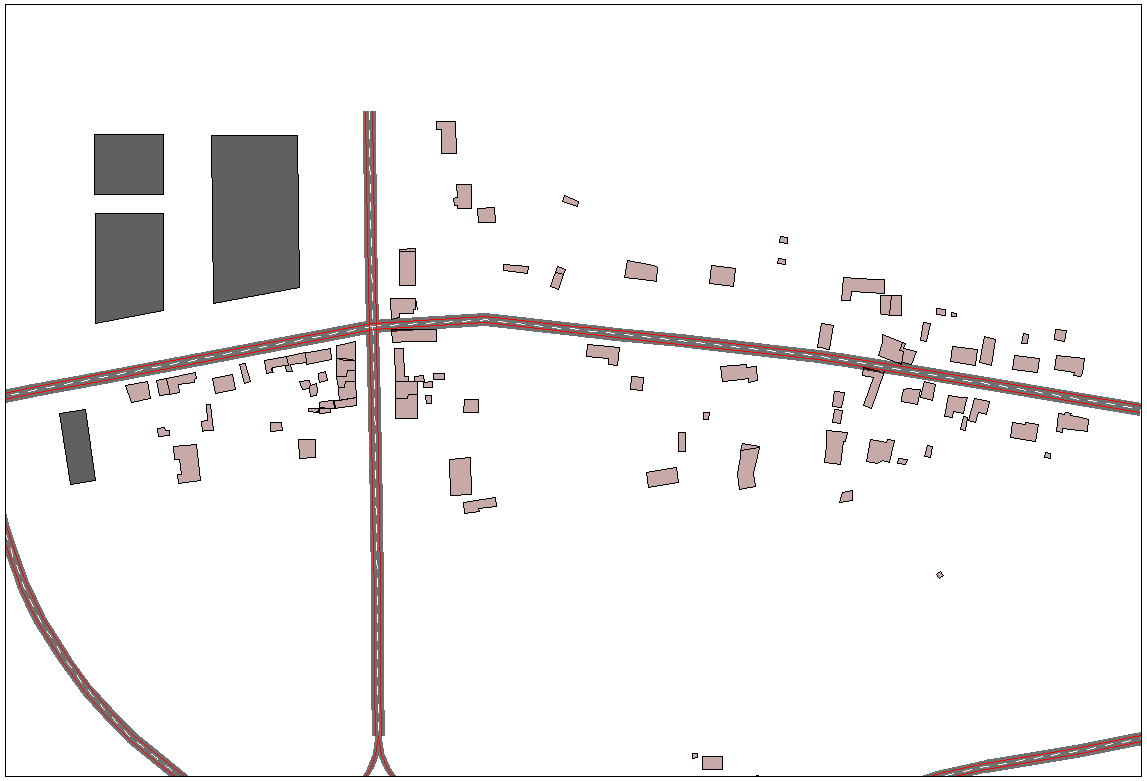

Why I don't see my labels in my layout?

When using layouts, labels can be available to display building id, results, flows or speeds on the roads... A large number of labels for this type of theme can be causing performance issues when creating the layout. Therefore, they are disabled by default.

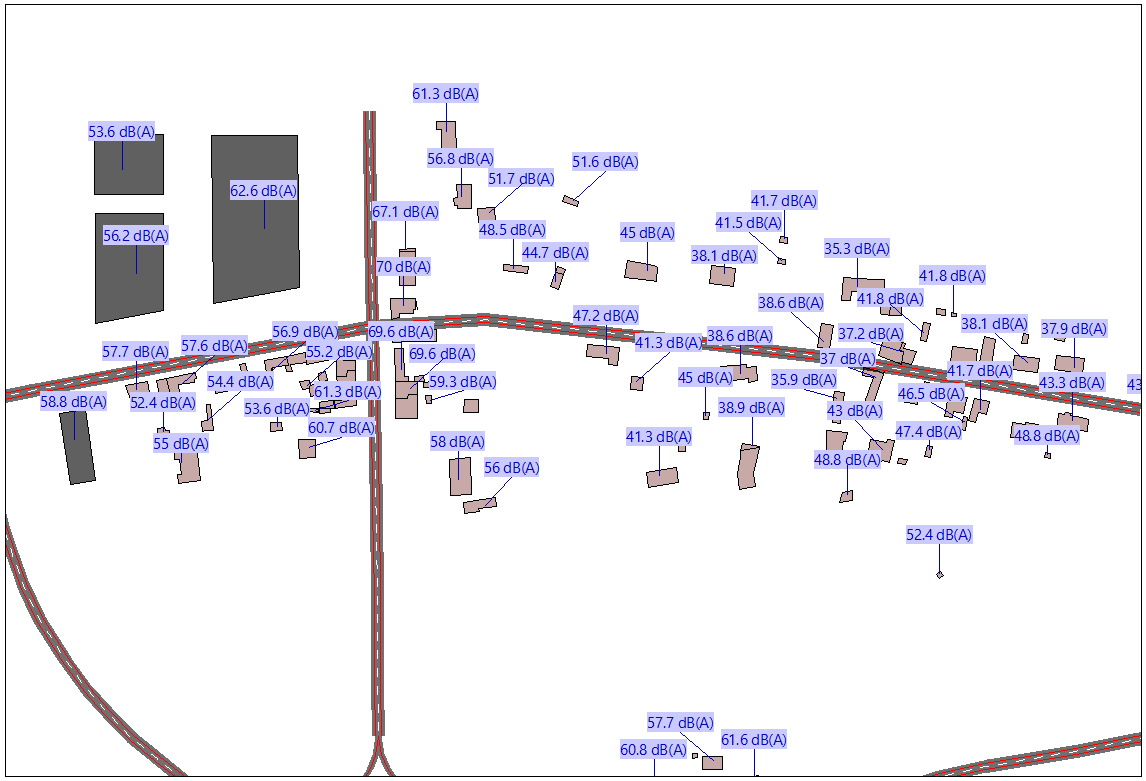

Display the labels

Once the layout created, proceed as follow to display the labels:

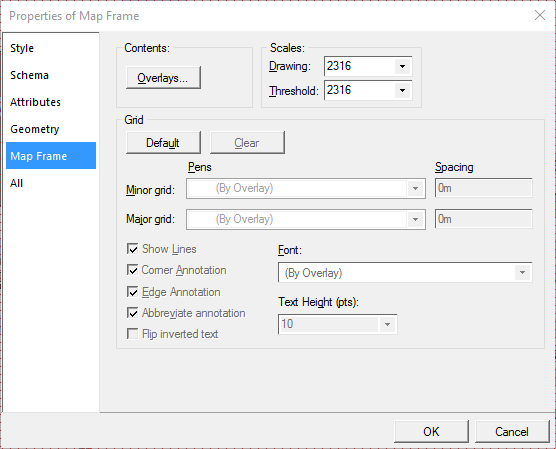

•Select the object Map Frame, then right-click Properties.

•In the tab Map Frame, click on the button Map overlays.

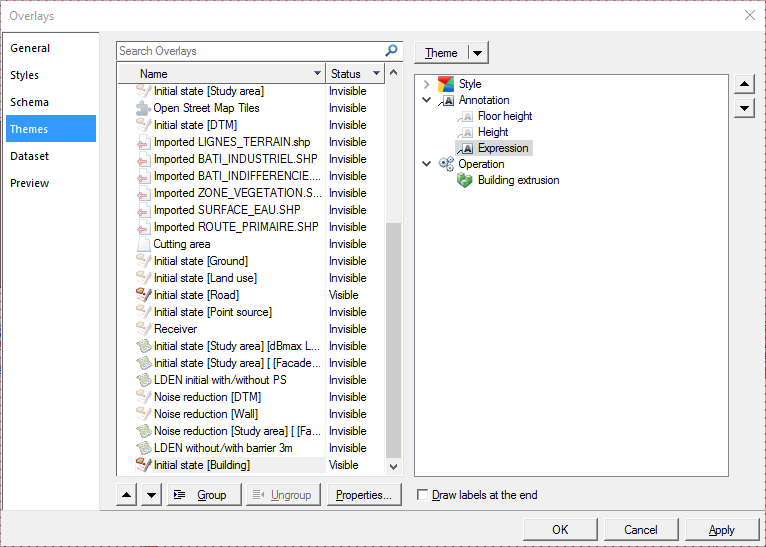

•In the tab Themes, select the overlay with the created theme (the active overlays in the layout don't have a "disable" icon). In Labels, activate the theme.

•Validate all the windows.
