Standard functions > Layout and print template

A project layout can be exported as image or PDF. A layout can be created from a print template. Templates are already saved in MithraSIG, but the user can create his own from an existing one, by modify it and save it.

Layout wizard

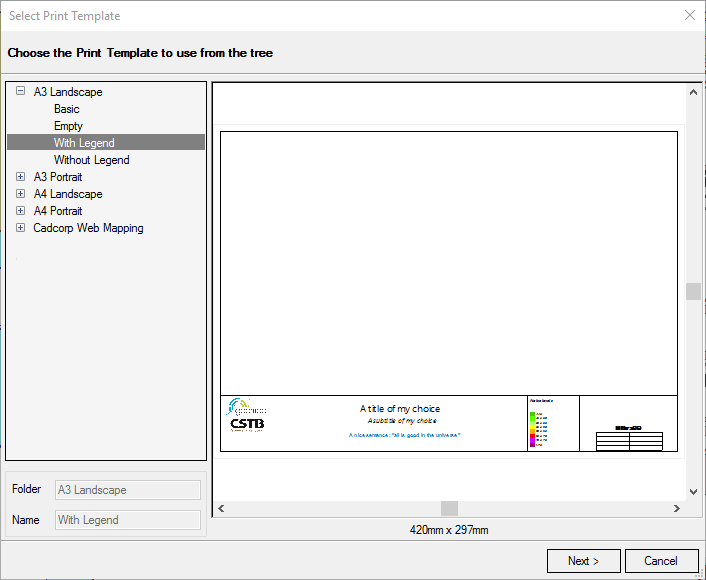

To create a layout, go in the menu File and click on Layout/Create a layout from a print template. Then the wizard starts and just follow the instructions on screen.

It is possible to:

•select the template: size, orientation, visual.

•select scale and set model position on the project.

•modify text information written in the template by editing the cells Text: title, sub-title, date, situation...

•add theme present in the project by a drag & drop.

•add North arrow.

•add scale bar.

Click on OK at the end and save the project (allowing the user to modify it later). Then proceed to an export.
