To visualize a vertical map section, select one or several items of the vertical map, then right-click and activate the command Vertical map section.

Additionally, vertical cross section can be displayed using the right-click on the map overlay.

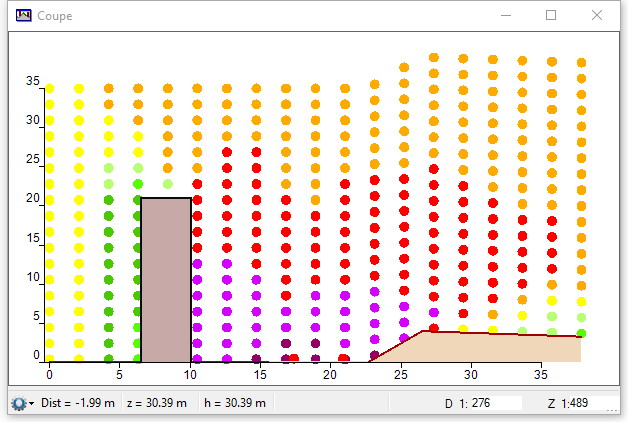

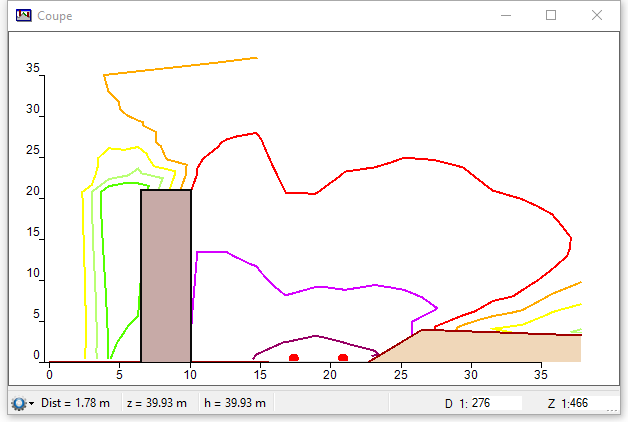

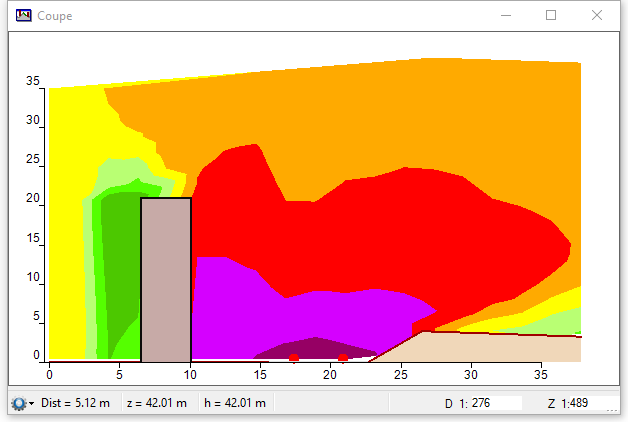

The map displayed in section depends on the type of the selected item.

A move of the mouse on a graphic item updates the value (dB).

The window is sizable by clicking on the button , to have several options to manage X/Y scale, display text / scale .axis, and to save the cross section as an image.
