•From the ribbon Model, click on the button in the group Add items.

•The Line tool is active. Design the geometry that corresponds to the new object. Finish by pressing the Enter key.

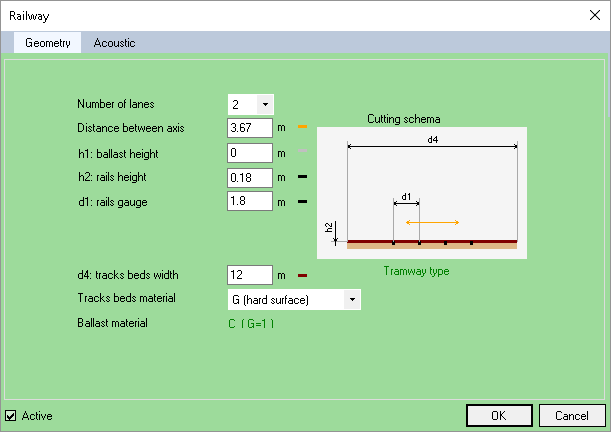

•The Railway interface is displayed so that the parameters of the input line can be entered.

•Enter a h1: ballast height of 0: the interface is automatically updated.

•The configuration is identical to that of a standard railway track.

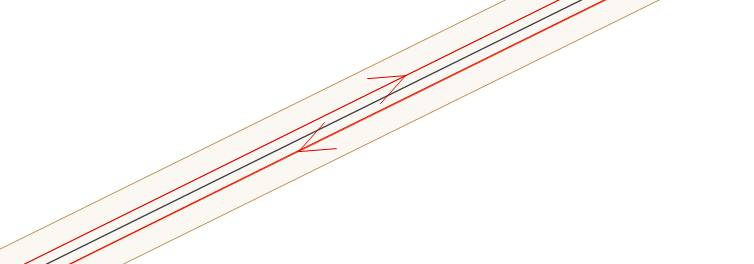

The graphic representation of a tramway
