In this type of simulation, each building is represented by its facades. A simulation is done for each facade on each floor of the buildings. The domain of simulation is represented by a polygon. Only facades within this area are simulated.

The icon is .

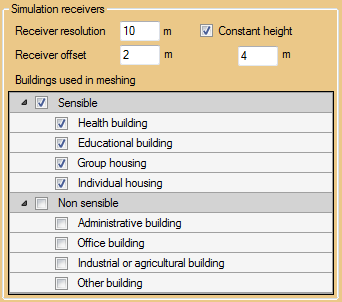

Settings

•Receiver resolution: maximum offset between two receivers at the same height (same floor of the building) along the facade.

•Receiver shift: offset distance between the receivers and the facade.This option has small influence on the calculation results outside areas where facade antennas are positioned very close to the receivers.

•Constant height : checkbox allowing to set all simulation receivers at a fixed height, and not at each floor. The height has to be entered in the field just below.
