V/m equivalent 900

<< Click to display Table of content >>

Navigation:  The Renderings > The Maps > Units >

V/m equivalent 900

Page précédenteRetour chapitrePage suivante

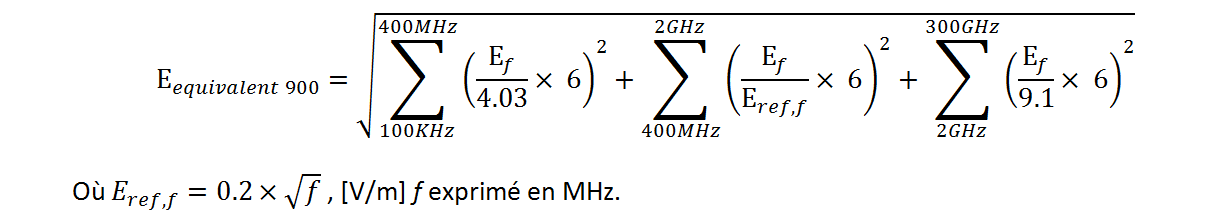

The AGRBC 2014 formula used to calculate the equivalent 900 is:

Carte_ParamVisu_Eq9002014

From MithraREM version 3, the formula becomes :

To calculate the 900 MHz equivalent values of an effective electric field E at frequency f, the following formulas are used inside :

Carte_ParamVisu_Eq900In

To calculate the 900 MHz equivalent values of an effective electric field E at frequency f, the following formulas are used outside :

Carte_ParamVisu_Eq900Out
