The Model > The radioelectric transmitters > Import Export Antenna

The tool CSV antennas has 2 features: the creation of a CSV model file and the conversion of a CSV file into a XML file that can be both integrated in MithraREM.

The interface is available by clicking on the button in the ribbon Model, group Integration.

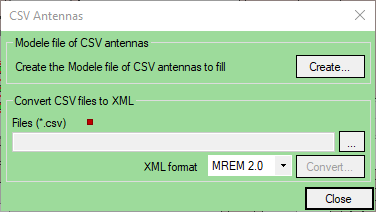

Emetteur_Antenne_CSV

Template of the CSV antennas file

By clicking on the button , a CSV file is created in the specified directory. The file can be filled with the required information, then be integrated in MithraREM using the integration process.

The green options are optional.

•Operator: Operator name.

•BTS Name: Base station name.

•BTS Address: Base station address.

•BTS Comment: Base station comment.

•ANT Name: Antenna name, must be unique.

•ANT Coordinate X: X coordinate of the antenna.

•ANT Coordinate Y: Y coordinate of the antenna.

•ANT HMA: Antenna MAH (Middle Antenna Height).

•ANT Type (OMNI ou DIR): Antenna type, omnidirectional or directive. If not specified, the type OTHER will be applied.

•ANT Azimuth: Antenna azimuth (0;360°).

•ANT Mecanic Tilt: Antenna mechanic tilt (-90;90°).

•ANT Dimension: Antenna height (in metres).

•ANT Comment: Antenna comment.

•TRANS MSI File: Pattern file name (MSI). If the name is not specified, the antenna will not be integrated.

•TRANS InputPower dBm: Antenna power in dBm.

•TRANS Gain dBi: Antenna gain in dBi.

•TRANS Electric Tilt: Antenna electric tilt (-90;90°).

•TRANS Frequency Name: Technology and frequency band of the antenna.

•TRANS Min Frequency: Minimum frequency band of the antenna.

•TRANS Max Frequency: Maximum frequency band of the antenna.

•Frequency: Antenna frequency.

Convert CSV files into XML

This function converts a MithraREM CSV file into a XML file having the MithraREM structure for the integration process. CSV file can be converted into 2 XML formats: MREM 1.7 that can be used in the version 1.7 of the software, and MREM 2.0 that can be used in the version 2 of the software.

To convert a CVS file:

•Choose a CSV file by clicking on the button .

•Select the output XML format..

•Click on the button .

•Save the file in the directory of your choice.
