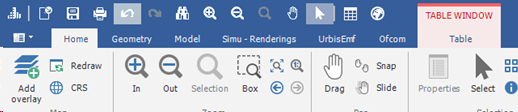

Presentation of the improvement of MithraREM version 3. This version is based on a new Windows ribbon.
This release improves 3D view with a new version of SIS Active X. it also improves near-antenna field calculations .

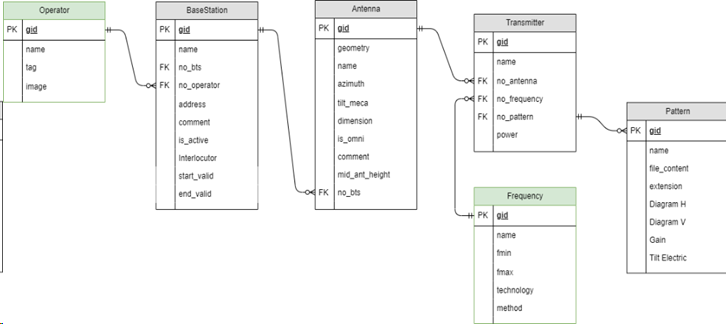

This version also changes the internal antenna model by allowing precise calculations per antenna dipoles. This new data model offers new field of application to such as Radar, Navaids, etc.
In MithraREM 2, one antenna == one transmitter |

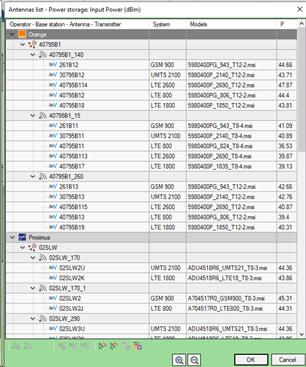

In MithraREM 3, one antenna == n transmitters with the same geographic settings (Azimuth, Position, Dimension) |
Version 3 adds 2 optional modules.
•MithraREM Ray Tracer module is an optional module for visualizing ray trace during simulation.
•The module 5G is available as an option in MithraREM. This module allows to work on 3D diagrams (MR3D format) with a 3D evaluation (Phi Theta) which is more complete than the models provided in MSI form (vertical and horizontal section).This module also allows to create customized antenna UPA models (choice of number of dipoles and their spacing) and to concatenate diagrams in 3D.
