Ray visualization is an option of the receiver mode calculation, with an "Export simulation rays" checkbox.

During simulation, rays are saved in parallel with the result files.



At the end of the simulation, it is possible to insert these rays in the same method as maps.

Rays can be viewed by right-clicking on a calculation or from the calculation parameter interface.

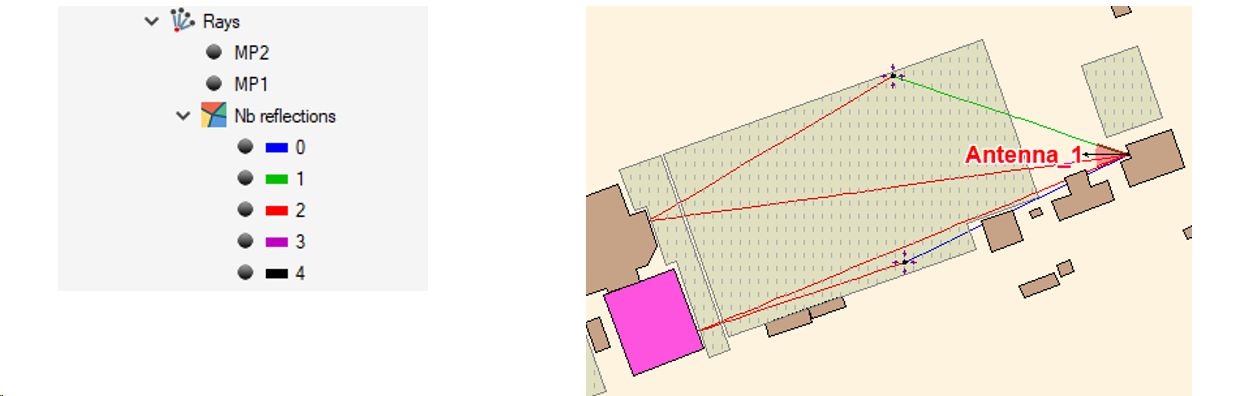

Rays can be filtered according to the receivers present. Each calculated receiver has its own filter.

In the example above, 2 receptors have been calculated. These receivers are called MP1 and MP2. Only the MP2 filter is active, so only the rays from this receiver will be visible.

Rays are colored according to their number of reflections. Direct rays are shown in blue.
