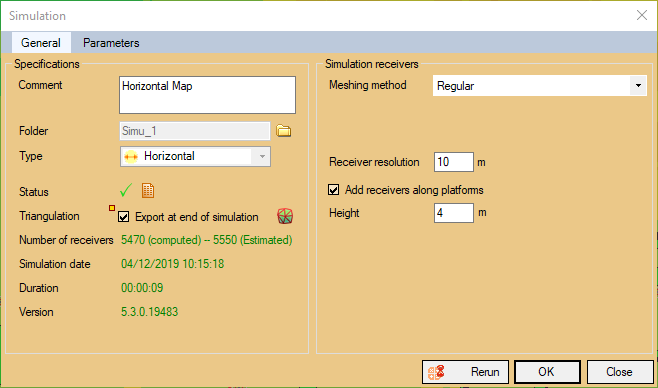

The general description of the simulation can be found on the General tab in the simulation window.

Description

•Comment: free input field – is used to define the name of the simulation.

•Folder: the name of the folder is automatically created by MithraSIG.

•Type: the type of simulation. More details in the chapter The different simulation types.

•Its Status: ready, finished, interrupted.

•Triangulation: check if you want to export the simulation triangulation at the end of the simulation and to be able to visualize it. Be aware that enabling this option can significantly increase the size of your project.

•The Number of receivers (0 when created).

•The Date when the simulation has been launched for the last time.

•The Duration.

•The MithraSIG Version from which the simulation has been launched.

Simulation receivers

The information for the simulation receivers depends of the type of simulation selected.
