Why I don't see my labels in my print template?

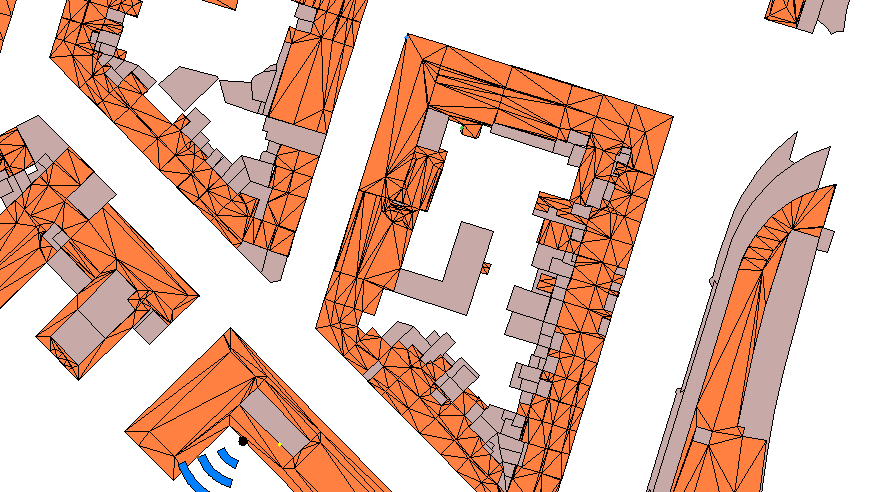

When using print templates, labels can be available to display building id, results, flows or speeds on the roads... A large number of labels for this type of theme can be causing performance issues when creating the print template. Therefore, they are disabled by default.

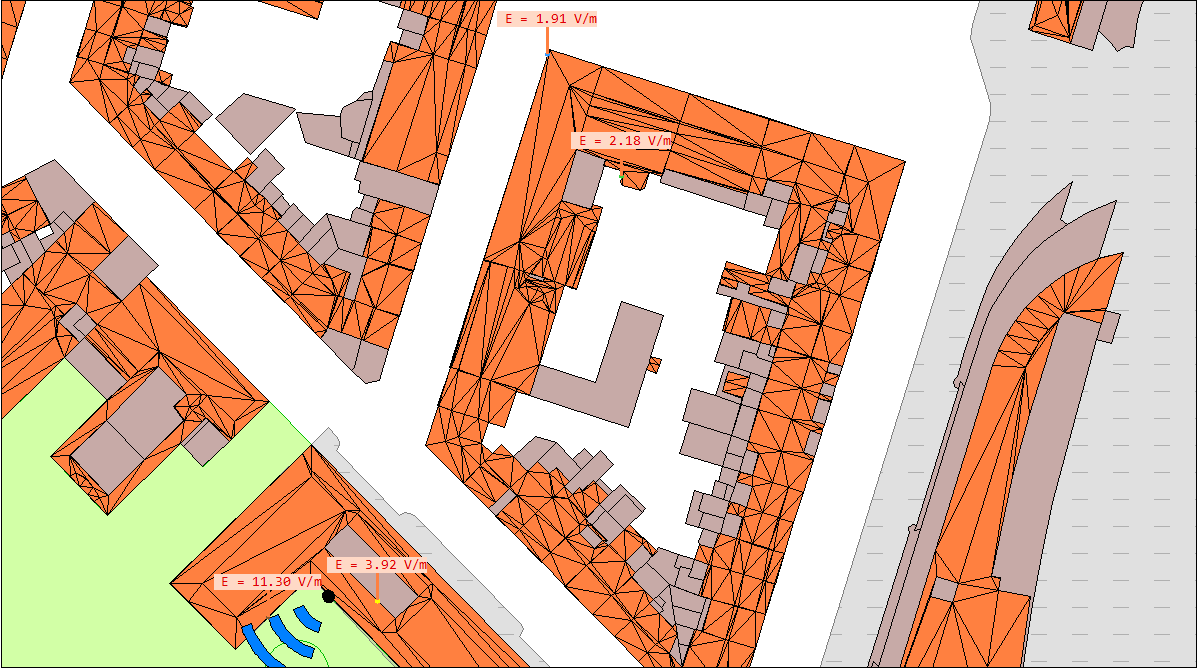

Display the labels

Once the print template created, proceed as follow to display the labels:

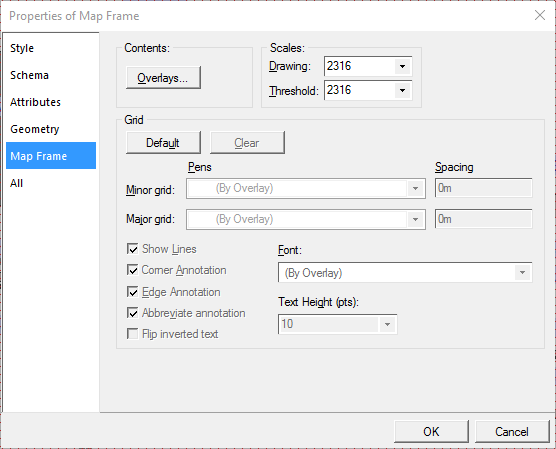

•Select the object Map Frame, then right-click Properties.

•In the tab Map Frame, click on the button Map overlays.

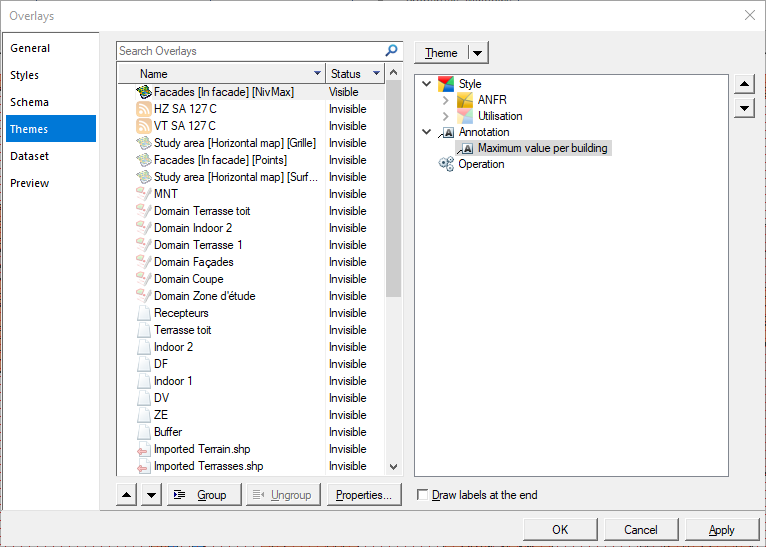

•In the tab Themes, select the overlay with the created theme (the active overlays in the print template don't have a "disable" icon). In Labels, activate the theme.

•Validate all the windows.
