Personal style are available from an interface that can be displayed by clicking on the button in the group Parameters from the ribbon Model.

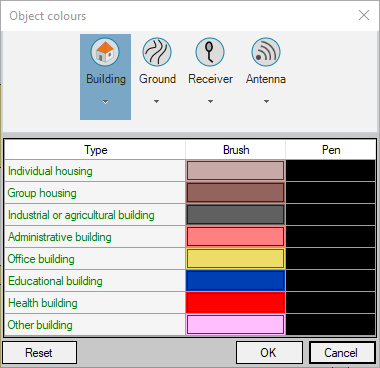

Colors of several objects can be modified: building, ground, receiver, antenna.

Each item color that is the objet can be modified (brush and pen for polygons, only pen for lines or points) by clicking on the corresponding color.

To apply new user colors, the default parameter "Use personal style" must be put to "Yes".

A theme is applyed on the corresponding overlay and it can be activated / desactivated manually from the overlay.

The button : no brush color can be defined because of the item type (line or point).

The button re-initializes all colors with the default application colors.

Symbols of objetcs

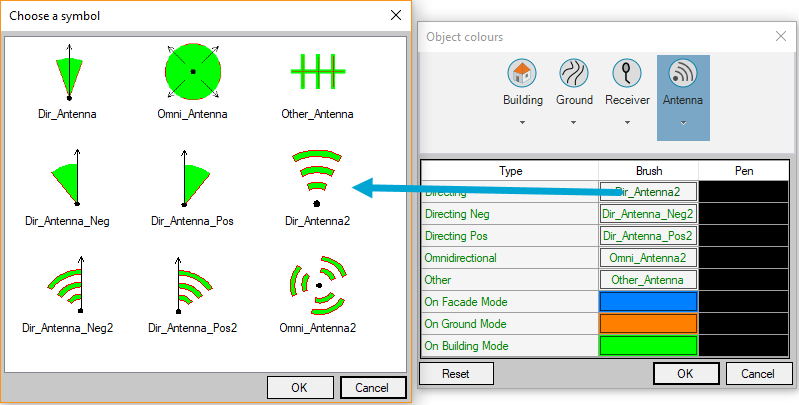

For the receivers and the antennas, the symbols can be changed from a list by clicking on the corresponding option.
