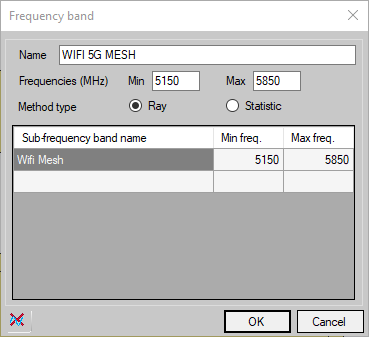

This dialogue box is accessible from the List of frequency bands.

A frequency sub-band can be deleted from the list either from the contextual menu Delete sub-band either from the button .

Following rules are applied when creating or editing a band or sub-band:

•Band: the minimum frequency must be less than the maximum frequency.

•Sub-band: the minimum frequency must be less than the maximum sub-band frequency.

•Frequency : frequencies of a sub-band must be included in the Min/Max bands.

As far as those rules are not verified, the errors are highlighted and validation is not available.

A method has to be defined for the simulation : Ray or Statistic.



Note : it is possible to input a pure frequency. The simulation will be computed on these specific frequency (not on a band). For this, minimum frequency must be equal to maximum frequency without any sub-frequency bands.
